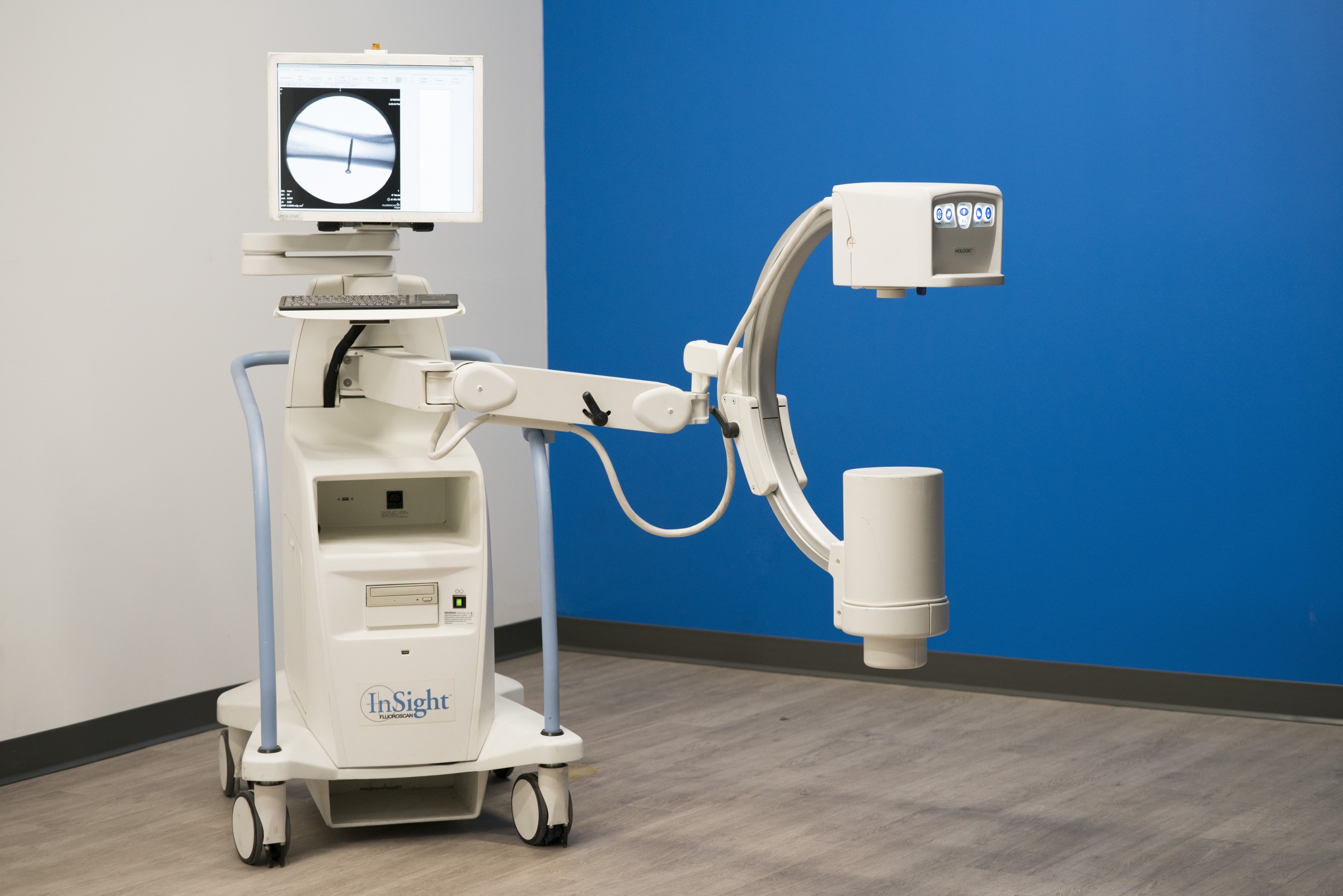

The Hologic Fluoroscan InSight 2 is an intuitive and easy-to-use, cost-effective system designed specifically for the orthopedic and extremity imaging market. With high-quality digital images, simplified operation and easy mobility, the system is the ideal choice for the operating room, emergency department, doctor’s office, surgery center, and sports medicine facility. The Fluoroscan InSight 2 equipped with a standard 6”/4” image intensifier and delivers ultra-fine, low-dose fluoroscopy and snap-shot images.
Specifications
X-ray Generation
- kV Range
- 40 - 75 kVp
- mA Range
- 0.02 - 0.10 mA
Imaging
- Image intensifier
- 6"
- II formats
- 6", 4"
- Camera
- High Resolution CCD
User Interface
- Monitor
- 20"
Geometry
- Free space within C-arm
- 14"
- Vertical Range
- 23"
- C-arm depth
- 16"
- Rotation
- 120°
Connectivity
- Networking (DICOM Optional)
- Wired
- Other
- USB(Image Export)
Dimensions
- C-Arm
- 57" H x 28" W x 32" L
- C-Arm Weight
- 400 lbs
